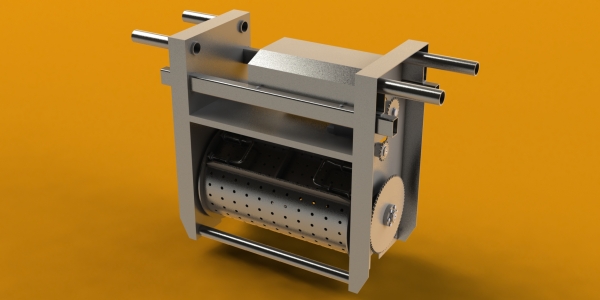

Inside of the vats treatment it is possible to insert carry basket equipment, rotating drum or carry basket drum. The choices can be manifold and it is possible to personalize them according to the specific demands of the client.
SEPARATOR OF OIL
Included mainly in the degreasing baths, serve to separate the oils from the cleaning solutions in order to extend the life of the latter.
the basin is a container that, when the fixed basket, or the drum, are been charged by the carriage, is be set below with the purpose to pick up the possible draining liquids avoiding that these fall in the adjacent baths, polluting them. The insertion of the basin is programmable for every movement of the carriage.
TURN UP BEDFRAME HEAD
particularly useful to interface the plant with alternative systems of loading and unloading.
are comfortable to facilitate the control and the maintenance of the baths of treatment.
PLC AND MODEM
In the case of special automation, the machine can be equipped with a PLC, touch screen and modem for remote data transmission and a communication services via SMS.
Placed in the containers to maintain a homogeneous treatment solution as from the chemical as well as from the thermal point of view.
MULTI COMPARTMENT DRUM
to contemporarily treat different types of pieces, drums can be separated in more compartments.
SYSTEM OF AUTOMATIC LOADING/UNLOADING
This system is an automatic device, additionally to the machine, for the storage of the equipments in entry and in exit. It allows to make the machine work autonomously without the supervision of an operator.
METERING DEVICE PUMP
are pumps at low flowrate that introduce detergent inside of the tank of storage reservoirs to compensate the losses or the usury of the product.
if necessary is possible to install ultrasounds in the vats of treatment both to side that on fund of the vats.
also at high pressures it is possible to install nozzles at fast dismantlement to perform operations of cleaning.
for very elaborate cycles it is possible to install more reservoirs, in monoblock or externally, according to the demands of the client.
on all the machines it is possible to install a system of drying at circulation of warm air.
normally realized with double chamber heated by resistances at bath of oil, is useful to have a great uniformity of heat diffusion, or if the bath of treatment has problems when the sources of heating are too concentrate.
when the floors are not waterproofed it is possible to install a vat to pick up any accidental losses of liquid with pomp of raising.
RINSE WATER CONTROL
with the purpose to preserve the waters of rinse it is possible to introduce valves that open at the renewal only in presence of the basket in the vat.
AUTOMATIC TOP UP
system of automatic water top up, that allows to maintain constant the level of liquid inside of the vat.
INSIDE VAT LIFTING
such device, particularly useful for the phosphating, produces a vertical movement of the basket / drum inside of the vat, favoring the renovation of the solution of treatment nearest to the pieces to treat.
especially for plant of great dimensions could be useful move the controls in more comfortable zones, distant from the electric panel. For this is possible to add consoles of remote control endowed with display.
for special requirements it’s possible to install filters with degree of retention of 1-100 micron. On these machines are sually installed bag filters fed by an independent pump that aspires liquid from the treatment tank, pushed it in the filters and re-send it back in the tank.
In normal use of a system based on defined and programmed production times, it can be very useful to install a weekly Clock. This has to make an impact on the heating and / or the ventilation system so the ignition and the shutdown of these units can be planned.
